Reseating the Rewinder Cables (MS)

Note that we recommend making sure you are ESD safe when accessing the electronics inside of the Material Station.

• Place the Material Station upside down on a table, making sure to either open the door or have the front inch or two hang off of the edge in order to avoid damaging the door/hinge.

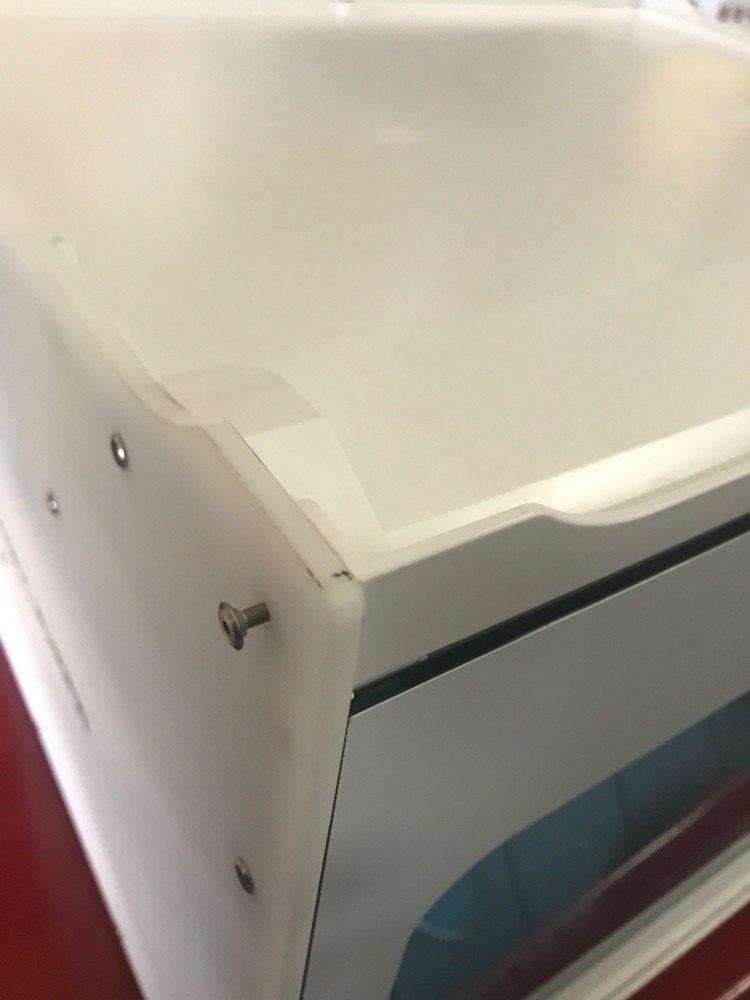

• Remove the frontmost screw from both side panels.


• Remove the bottom cover by pushing both panels away from the bottom of the machine, then pulling up from the front of the cover.

• Unplug all three of the rewinder cables and reconnect them.
